The Mathematical Secrets Hidden Within Barcelona’s Iconic Sagrada Família
2026 marks the centenary of Antoni Gaudí’s death, inviting a closer look at the mathematical secrets embedded in Barcelona’s Sagrada Família. From a 7.5-metre modular system to complex polyhedral structures, these numerical principles ensure the basilica's lasting structural and visual harmony.
Highlights
- •The Sagrada Família architecture is based on a 7.5-metre modular system and ratios derived from the number 12.
- •Architect Antoni Gaudí used complex polyhedrons, including dodecahedrons and octahedrons, to crown the building's towers.
- •Structural stability is achieved through innovative double-helix columns that mimic tree branches for efficient weight distribution.
- •The basilica incorporates symbolic mathematical features like a magic square summing to 33 on the Passion façade.
The year 2026 marks a century since the passing of Antoni Gaudí, the visionary architect behind the iconic Sagrada Família in Barcelona. Beyond its breathtaking aesthetic appeal, the basilica is a masterpiece of precision engineering, grounded in profound mathematical secrets that dictate its structural harmony and symbolic depth.
The Proportional System of Sagrada Família
Research conducted by mathematician Claudi Alsina i Català, who later mentored the current lead architect Jordi Faulí, uncovered a sophisticated system of proportions guiding the church's design. The foundation of this system rests on a 7.5-metre module and a series of ratios derived from the divisors of 12. This modular approach ensures balance and coherence throughout the massive structure.
The number 12 is central to the basilica’s identity, chosen for its symbolic religious significance—representing the 12 tribes of Israel and the 12 apostles—and its utility in geometry. Because it possesses multiple divisors, 12 allows for highly efficient proportional relationships. The dimensions of the Sagrada Família, including its 90-metre length and 60-metre width, are all multiples of this 7.5-metre unit, demonstrating a consistent reliance on these mathematical secrets.
Structural Engineering and Advanced Geometry

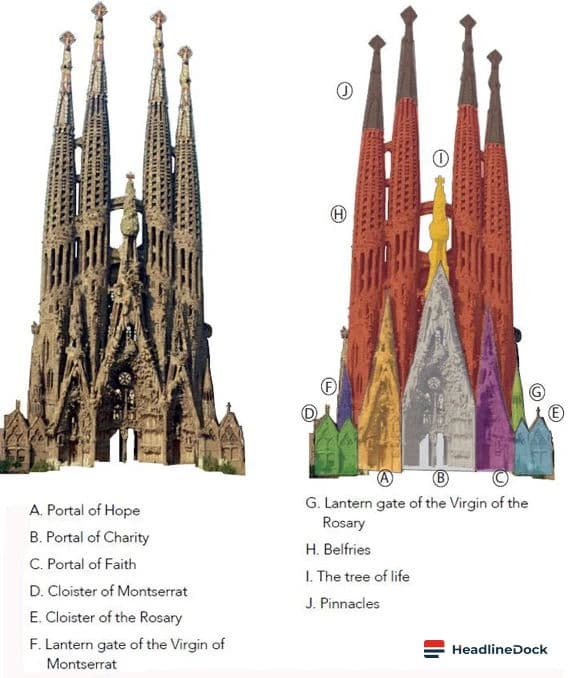

The construction utilizes advanced geometric forms, particularly polyhedrons, to define the silhouette of the towers. The towers of the Nativity façade are crowned by truncated irregular octahedrons, while those of the Passion façade feature truncated cubes. These complex shapes serve both aesthetic and functional purposes, often housing specialized lighting systems.
The interior architecture is equally remarkable, featuring a "forest" of double-helix torsion columns. These structures act as tree-like branches, efficiently transferring loads from the ceiling and towers down to the ground. Additionally, the skylights are designed as one-sheet hyperboloids. By employing these straight-line geometric constructions, the architects achieved greater ease of building while optimizing natural light projection inside the sanctuary.
Symbolism permeates every corner of the church. The canopy over the high altar is a perfect heptagon, representing the seven gifts of the Holy Spirit. Furthermore, a magic square on the Passion façade—mathematically balanced so that its rows, columns, and diagonals all sum to 33—highlights the integration of numerical puzzles into the sacred art. Through these hidden frameworks, Antoni Gaudí created not just a place of worship, but a lasting monument to the intersection of faith and rigorous science.
